The "122" series offers a wide field of vision and the "122PH" series is equipped with a photochromic lens that is convenient for long-term use.
The 122 series features a lightweight frame made of TR90 (Grilamid®), an ultra-elastic resin, and cylindrical wide lens. In addition to a wide field of vision, the moderate lens curves are designed to fit Asian faces.
In addition, the nose pad is freely adjustable, and the outside of the lens is coated with oleophobic and water repellent coating that repels oil as well as moisture.
■122/122PH Common specifications
Asian Fit Cylindrical Wide Lens
Asian fit cylindrical wide lens is adopted. Not only a wide field of vision, but also a high fit due to the moderate curvature is realized.
 |
 |
| ▲Lens size |
▲sizes |
Adjustable Nose pad
Freely adjustable metal frame is inside the nose pad.

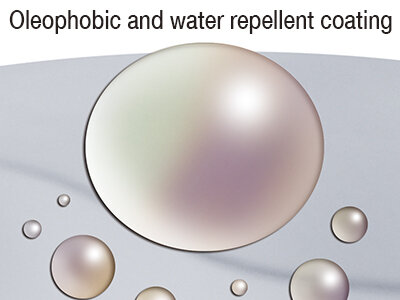

Oleophobic and Water Repellent Coating
Water and oil repellent coating that repels not only moisture but also oil. Reduces dirt adhesion on lens and improves visibility.
Inner Frame (optionally available)
Exclusive inner frame (optional) for prescription lens is also available to attach.
▼2 kinds of spare lens are included for model「122」
Mauve Green lens is designed to be used by professional cyclists, with excellent visibility and effective shadeing. AR (Anti-reflection) clear lens has an anti-reflection coating on the inner surface to reduce diffuse reflection on the inner surface of the lens that occurs during night time use, etc.

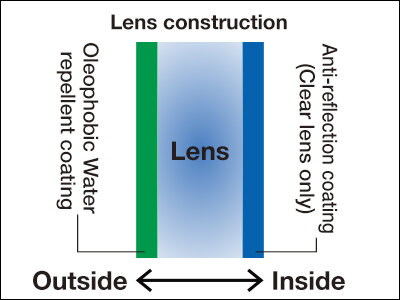

Anti-reflective coating (AR clear lens only)
This coating has the function of reducing reflected light. Effective in improving visibility of high transmittance lenses such as clear lenses.
■Colors
122 has 4 frame color ways.
White, Matte Black, Earth Blue (matte), Earth Green (matte)
 |
 |
| White / Mauve Green |
Matte Black/ Mauve Green |
 |
 |
| Earth Blue / Mauve Green |
Earth Green/ Mauve Green |
■122
※scheduled to start sales on mid June 2022 in Japan
Color : White, Matte Black, Earth Blue (matte), Earth Green (matte)
・Standard lens color (visible light transmittance): Mauve Green (20%), AR Clear (90%)
・Includes: Kabuto Soft Case No.1, Kabuto Lens Cloth No.1
・UV Transmittance : Less than 0.1% (common to all lens colors)
・Special Lens Coating : External oleophobic water repellent coating, Anti-refrection coating (clear lens only)
・Lens Curve : Cylindrical 6 curve
・Two sets of lens made of polycarbonate with excellent transparency, impact resistance and heat resistance as well as UV protection.
・Frame is made of TR90 (Grilamid®), a super-elastic resin with excellent lightweight and impact resistance.
・Inner frame is compatible (sold separately)
▼122PH LENS
122PH Red Clear Photochromic lens is equipped with a Oleophobic and water repellent coating on the outer surface and an anti-fog sheet on the inner surface. The synergy between the red mirror, which also takes into account the strong sunight, and the wide field of vision unique to this model, further enhances the utility performance of the photochromic lens. This is the pinnacle of lenses, developed for users who want to be able to adapt to different situations without having to change the lenses.

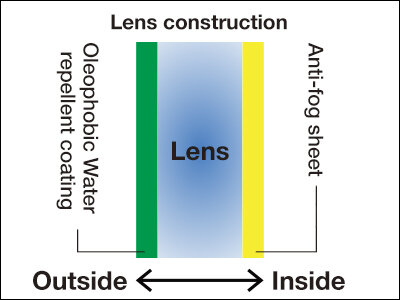

Oleophobic and Water Repellent Coating + Anti-fog Sheet
Equipped with an oleophobic and water repellent coating on the outer surface that repels both water and oil, and an antifog sheet on the inner surface. This is a highly functional lens that combines both antifouling and antifog performance.
Features mirror-coated photochromic clear lens
Red Clear Photochromic lens, which is attached on 122PH, has a mirror cating layer which provides a constant light shielding even at high temperatures when usually photochromic performance is reduced, and also have color shifting speed as same as the normal photochromic lenses.
■Color
frames are total 4 color ways.
White, Matte Black, Earth Blue (matte), Earth Green (matte)
 |
 |
| White / Red Clear Photochromic |
Matte Black / Red Clear Photochromic |
 |
 |
| Earth Blue / Red Clear Photochromic |
Earth Green / Red Clear Photochromic |
■122PH
※scheduled to start sales in mid June 2022 in Japan
Color：White, Matte Black, Earth Blue (matte), Earth Green (matte)

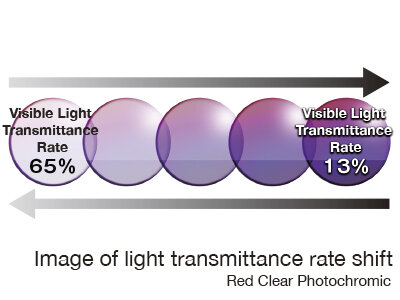

・Standard Lens color (visible light transmittance) : Red Clear Photochromic (65%-13%)
・Accessories：Kabuto Soft Case No.1, Kabuto Lens Cloth No.1
・UV Transmittance : less than 0.1% (common to all lens colors)
・Special lens coating : External oleophobic water repellent coating, internal anti-fog sheet
・Lens curve: Cylindrical 6 curve
・Polycarbonate lens with excellent transparency, impact resistance and heat resisstance as well as UV protection.
・Frame is made of TR90 (Grilamid®), a super-elastic resin with excellent lightness and impact resistance.
・Inner frame is compatible (sold separately)
